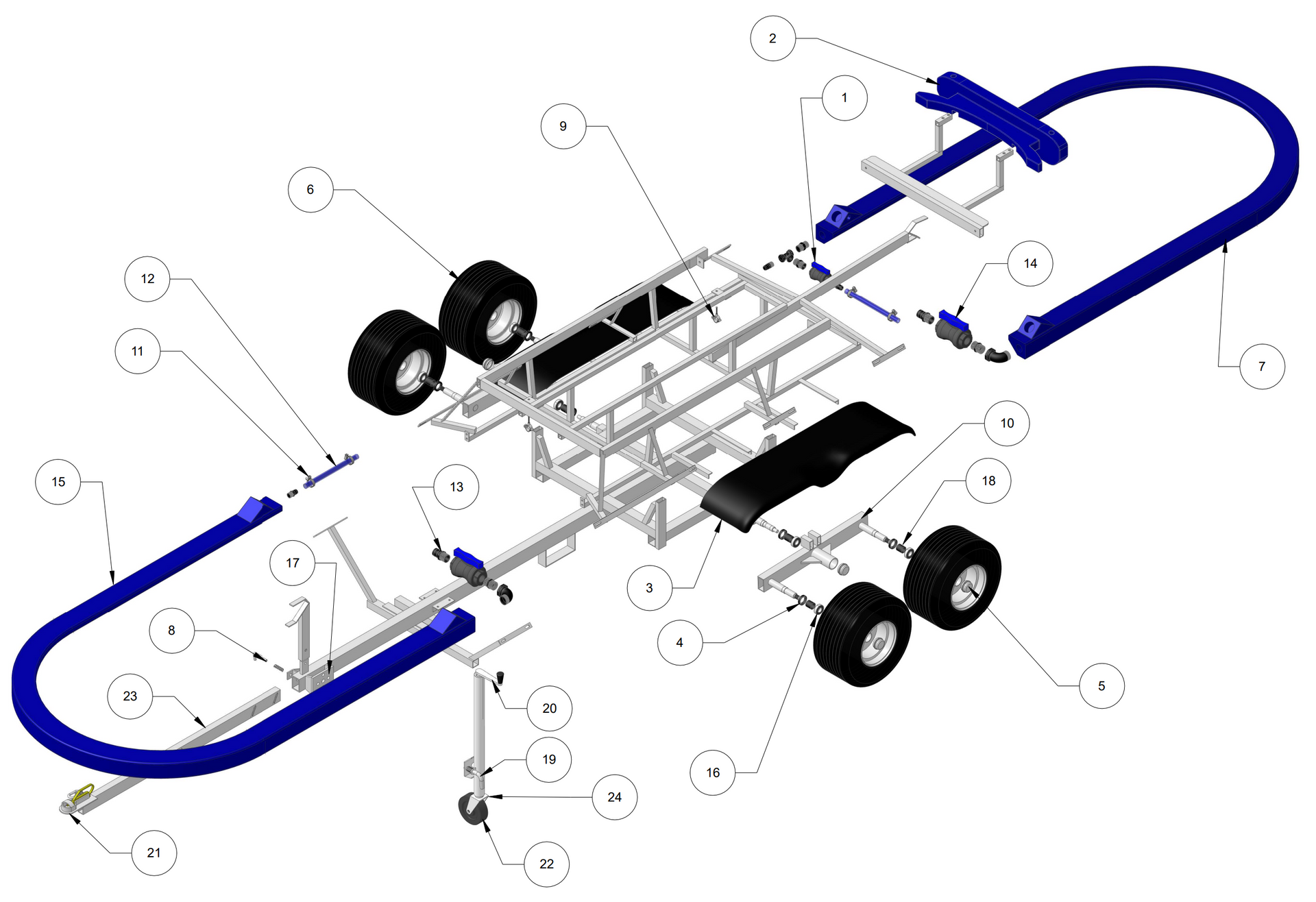

MTF70LT Frame

Current model (2016-onwards). For parts pertaining to earlier models, please email: parts@stallion.co.nz

Item Number Part Number Part Name RRP including GST (NZD)
1 A1430 25mm Ball Valves (Hansen) $ 95.45
2 A3029 Hose Holder (Midnight Blue Plastic) $ 217.35
3 A1302 Tandem Mudguard (Pair) $ 454.25
4 A1204 Wheel Bearing Seal 30x52x8 $ 29.9
5 A1360 Hub Caps $ 24.15
6 A1304 18" Wheel - MG40, MG50, MG60 & Tandem Trailers $ 317.4
7 A1169R 40 Teat Manifold to suit MTF70 - REAR $ 1872.2
8 A1258 Draw Bar Retaining Pin Set $ 40.25
9 A2221 25NB Pipe Hanger Stainless Steel $ 108.1
10 A1202 Swing Arm - Pair $ 584.2
11 A1462 Hose Clip 17-38 $ 18.4
12 A1501 25mm dia Delivery Hose tubing, Milk Tanker/Mixer $ 39.68
13 A1455 40mm Hose Tail (Stallion) $ 20.47
14 A1432 40mm Ball Valves (Hansen) $ 143.75
15 A1169F 30 Teat Manifold to suit MTF70 - FRONT $ 1614.6
16 A1207 Bearing 6205 $ 40.25
17 A1362 Mounting Plate only to suit Jockey Wheel $ 49.45
18 KIT - Wheel Wheel Bearing Kit Complete - 2 Bearings, 1 Seal, 1 Spacer, 1 Hub Cap $ 131.1
19 A1265 Jockey Wheel Pin and Spring Set $ 40.25
20 A1366 Handle only to suit Jockey Wheel (Flat Cast Iron with Plastic Knob) $ 78.2
21 A1259 Draw Bar Coupling Only $ 165.6
22 A1351 Plastic wheel only (Black) $ 85.1
23 A1254 Draw Bar Including New Style Coupling - Short $ 492.2
24 A1361 Large Swivel type Jockey Wheel Complete (Fits all feeders) $ 453.1
