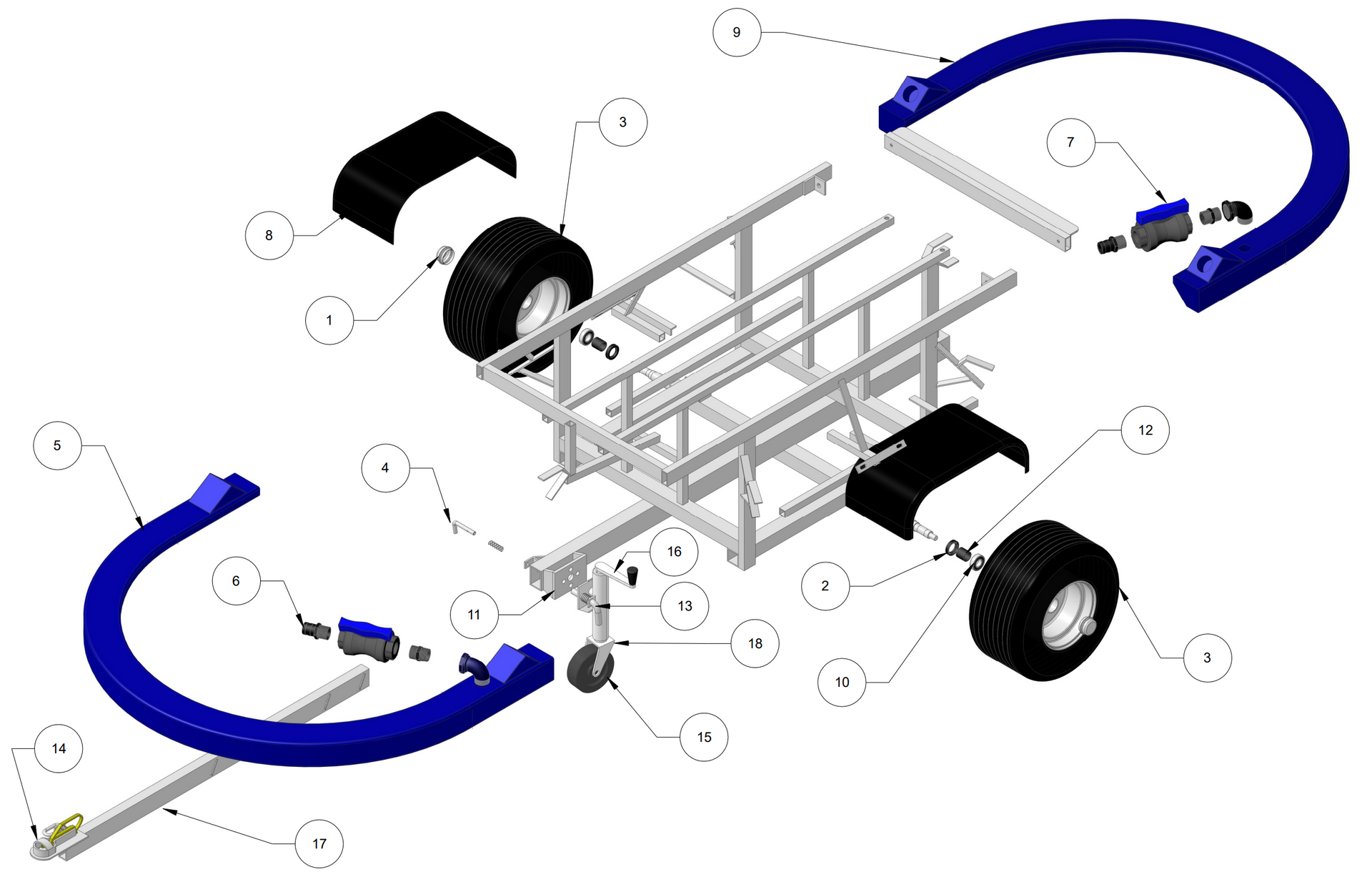

MG40S Frame

Current model (2016-onwards). For parts pertaining to earlier models, please email: parts@stallion.co.nz

Item Number Part Number Part Name RRP including GST (NZD)
1 A1360 Hub Caps $ 24.15
2 A1204 Wheel Bearing Seal 30x52x8 $ 29.9
3 A1304 18" Wheel - MG40, MG50, MG60 & Tandem Trailers $ 317.4
4 A1258 Draw Bar Retaining Pin Set $ 40.25
5 A1159F 20 Teat Manifold - FRONT $ 913.1
6 A1455 40mm Hose Tail (Stallion) $ 20.47
7 A1432 40mm Ball Valves (Hansen) $ 143.75
8 A1301 Single Mudguard (Pair) $ 248.4
9 A1159R 20 Teat Manifold - REAR $ 913.1
10 A1207 Bearing 6205 $ 40.25
11 A1362 Mounting Plate only to suit Jockey Wheel $ 49.45
12 KIT - Wheel Wheel Bearing Kit Complete - 2 Bearings, 1 Seal, 1 Spacer, 1 Hub Cap $ 131.1
13 A1265 Jockey Wheel Pin and Spring Set $ 40.25
14 A1259 Draw Bar Coupling Only $ 165.6
15 A1351 Plastic wheel only (Black) $ 85.1
16 A1366 Handle only to suit Jockey Wheel (Flast Cast Iron with Plastic Knob) $ 78.2
17 A1254 Draw Bar Including New Style Coupling - Short $ 492.2
18 A1363 Short Swivel Type Jockey Wheel $ 388.7
