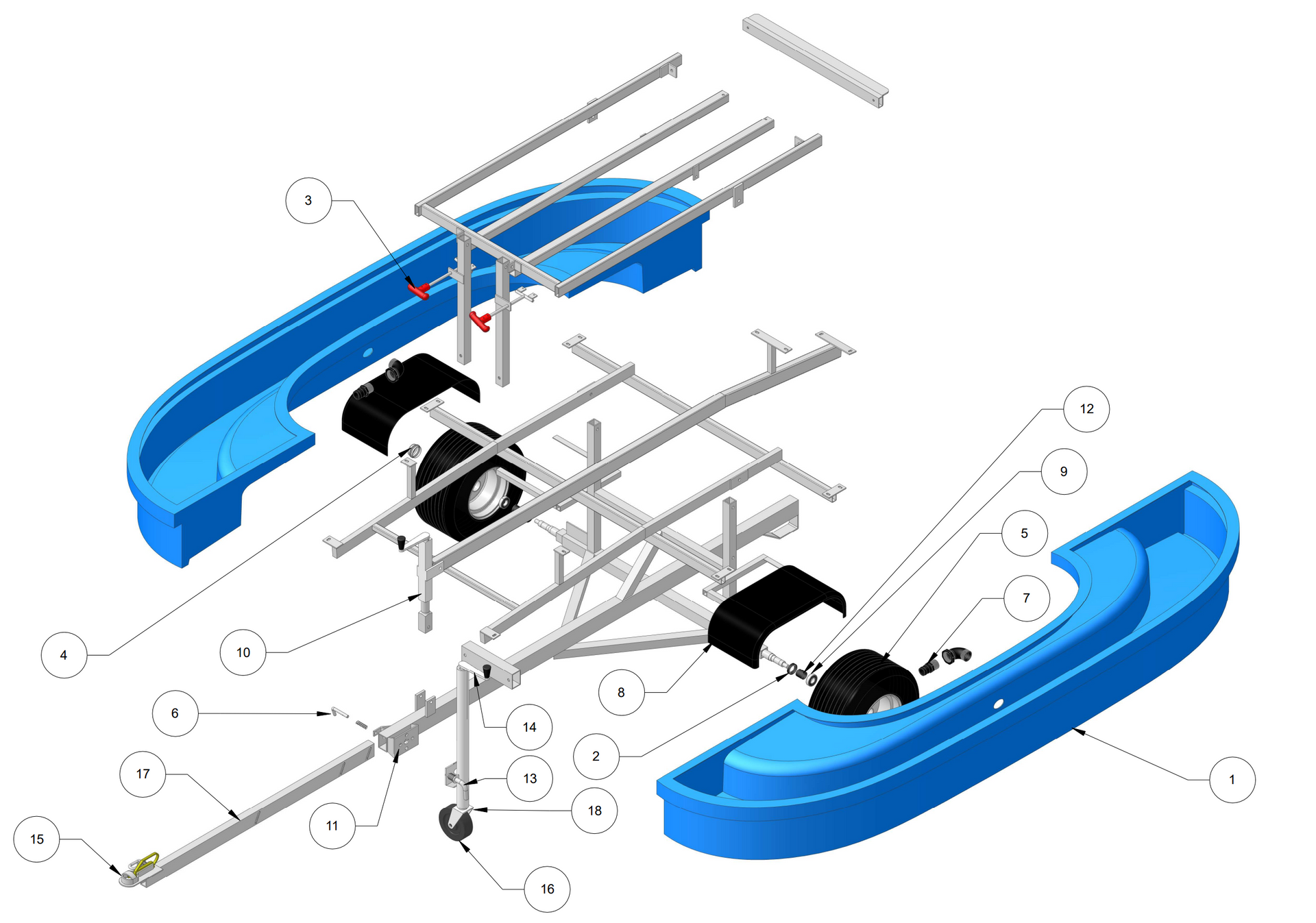

OT50S FRAME

Current model (2016-onwards). For parts pertaining to earlier models, please email: parts@stallion.co.nz

Item Number Part Number Part Name RRP including GST (NZD)
1 A1156 OT25 Trough 170ltr (with Teats and Caps) $ 1139.65 ($1675.55)
2 A1204 Wheel Bearing Seal 30x52x8 $ 29.9
3 A3016 Red Handle for Modular Feeders - Including Pins $ 33.35
4 A1360 Hub Caps $ 24.15
5 A1304 18" Wheel - MG40, MG50, MG60 & Tandem Trailers $ 317.4
6 A1258 Draw Bar Retaining Pin Set $ 40.25
7 A1455 40mm Hose Tail (Stallion) $ 20.47
8 A1301 Single Mudguard (Pair) $ 248.4
9 A1207 Bearing 6205 $ 40.25
10 A1359 Leveller to suit OT Mobile range (new style) $ 284.05
11 A1362 Mounting Plate only to suit Jockey Wheel $ 49.45
12 KIT - Wheel Wheel Bearing Kit Complete - 2 Bearings, 1 Seal, 1 Spacer, 1 Hub Cap $ 131.1
13 A1265 Jockey Wheel Pin and Spring Set $ 40.25
14 A1366 Handle only to suit Jockey Wheel (Flat Cast Iron with Plastic Knob) $ 78.2
15 A1259 Draw Bar Coupling Only $ 165.6
16 A1351 Plastic wheel only (Black) $ 85.1
17 A1254 Draw Bar Including New Style Coupling - Short $ 492.2
18 A1361 Large Swivel type Jockey Wheel Complete (Fits all feeders) $ 453.1
