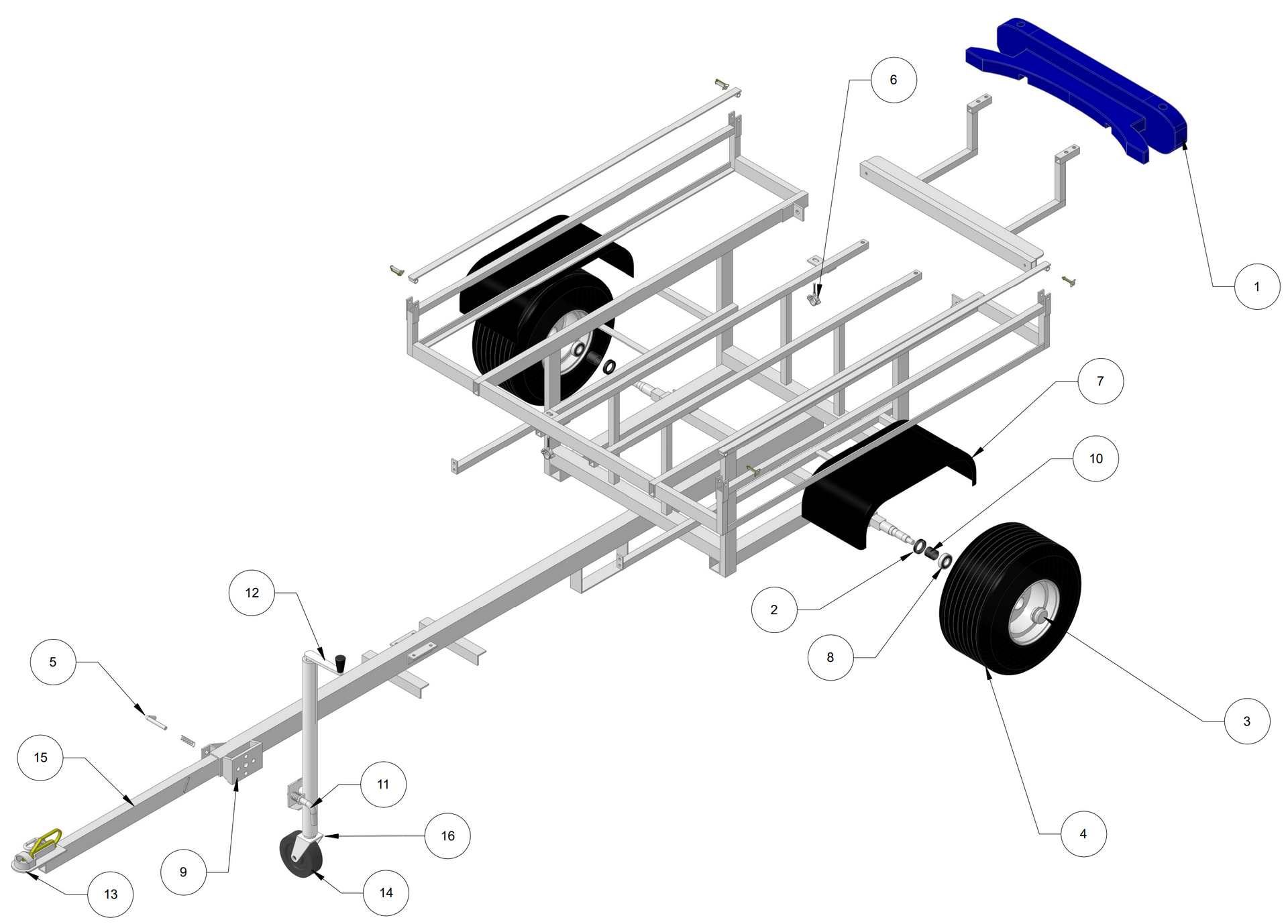

MT500 Frame

Current model (2016-onwards). For parts pertaining to earlier models, please email: parts@stallion.co.nz

Item Number Part Number Part Name RRP including GST (NZD)
1 A3029 Hose Holder (Midnight Blue Plastic) $ 217.35
2 A1204 Wheel Bearing Seal 30x52x8 $ 29.9
3 A1360 Hub Caps $ 24.15
4 A1304 18" Wheel - MG40, MG50, MG60 & Tandem Trailers $ 317.4
5 A1258 Draw Bar Retaining Pin Set $ 40.25
6 A2221 25NB Pipe Hanger Stainless Steel $ 108.1
7 A1301 Single Mudguard (Pair) $ 248.4
8 A1207 Bearing 6205 $ 40.25
9 A1362 Mounting Plate only to suit Jockey Wheel $ 49.45
10 KIT - Wheel Wheel Bearing Kit Complete - 2 Bearings, 1 Seal, 1 Spacer, 1 Hub Cap $ 131.1
11 A1265 Jockey Wheel Pin and Spring Set $ 40.25
12 A1366 Handle only to suit Jockey Wheel (Flat Cast Iron with Plastic Knob) $ 78.2
13 A1259 Draw Bar Coupling Only $ 165.6
14 A1351 Plastic wheel only (Black) $ 85.1
15 A1254 Draw Bar Including New Style Coupling - Short $ 492.2
16 A1361 Large Swivel type Jockey Wheel Complete (Fits all feeders) $ 453.1
